Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton

Product Categories
Xinrui International Trading Co., Ltd
Contact Now

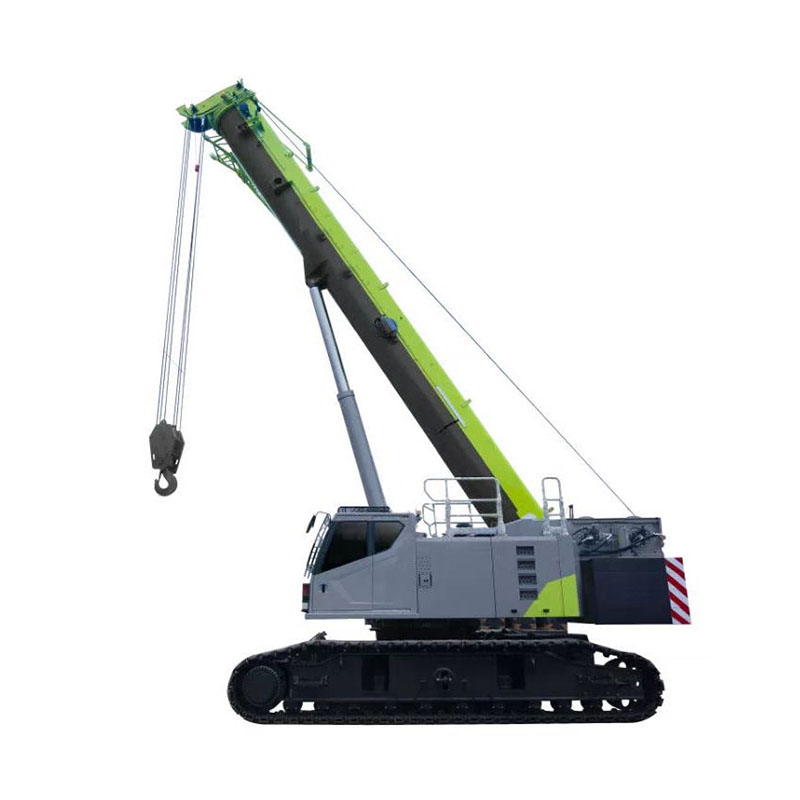

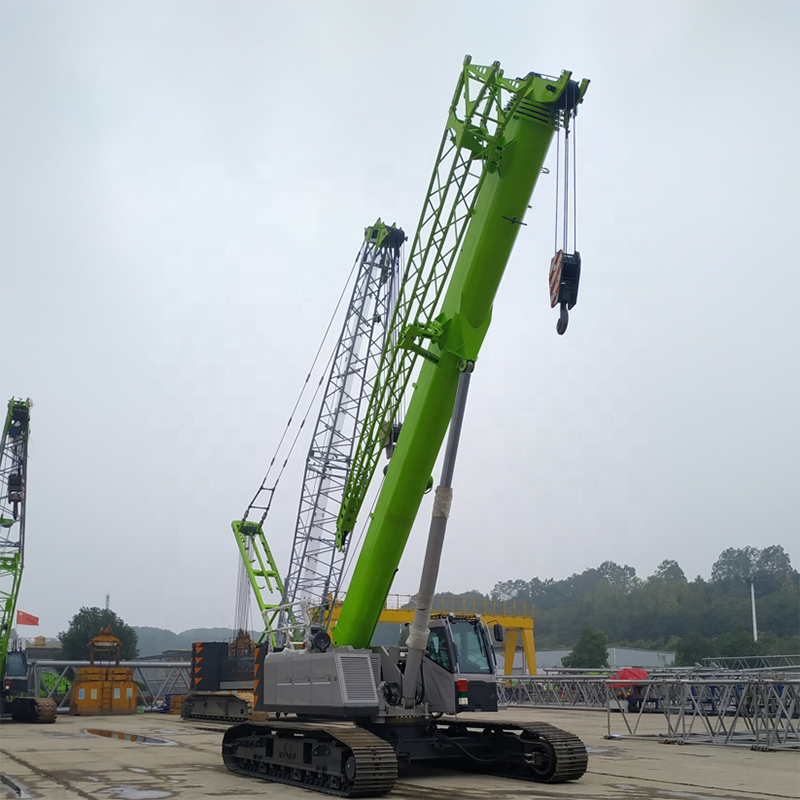

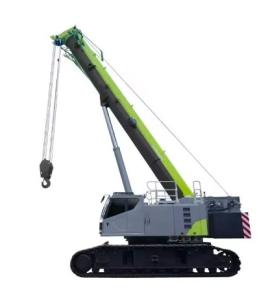

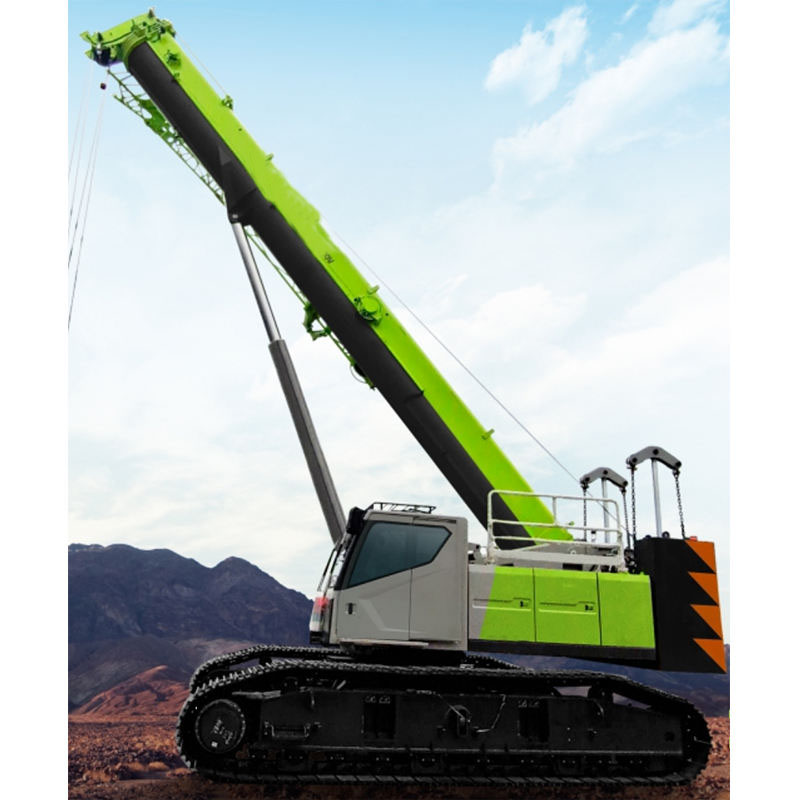

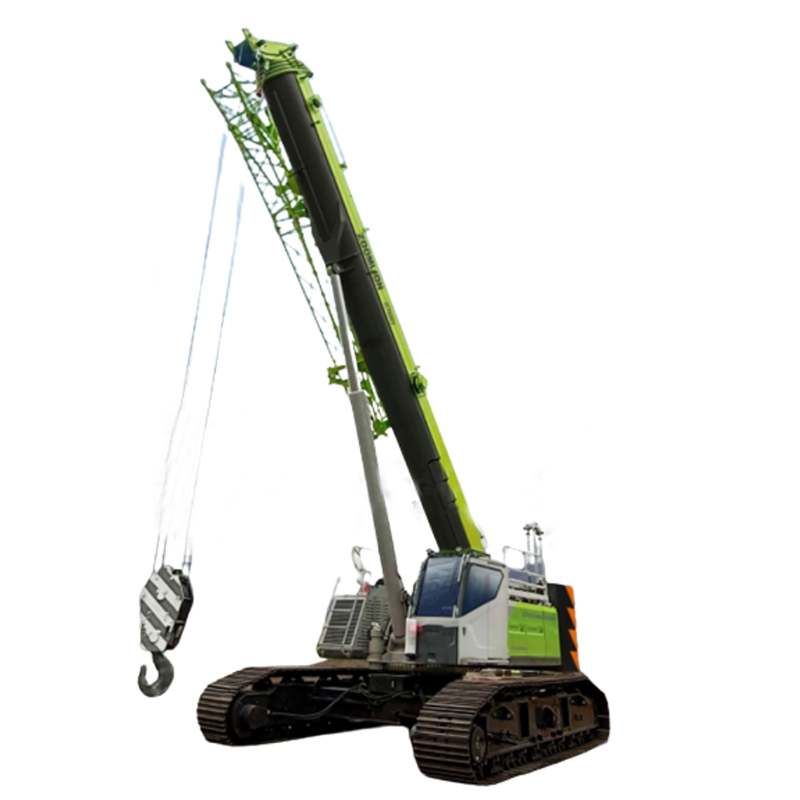

Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton

  • 1
  • 2
  • 3

Brand Name : Zoomlion

Model Number : ZCT600V532

Certification : EPA、CE

Place of Origin : Anhui, China

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000

Delivery Time : 7-10days

Packaging Details : frame

Weight (KG) : 30000

Marketing Type : Ordinary Product

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Application : Engineering machinery

Rated Loading Capacity : 60ton

Rated Lifting Moment : 3087KN.m

Product name : Mobile Crane

Crane type : Crawler Crane

Power Source : Diesel Engine

Contact Now

Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton

Other attributes

Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other

Weight (KG)
30000

Video outgoing-inspection
Provided

Machinery Test Report
Provided

Marketing Type
Ordinary Product

Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Place of Origin
Anhui, China

Feature
Other

Application
Engineering machinery

Rated Loading Capacity
60ton

Rated Lifting Moment
3087KN.m

Max. Lifting Height
58.5m

Brand Name
Zoomlion

Product name
Mobile Crane

Crane type
Crawler Crane

Type
Truck Mounted Crane Mobile Crane Truck

Brand
zoomlion

Jib length
7.5-12.8m

Main boom length
11.9-46m

Gradeability
45%

Overall dimension
14000*3300*3220mm

Power Source
Diesel Engine

Walking speed
2.7 (No load) /1.5(Full load)

Packaging and delivery

Packaging Details
wooden case or Container

Port
FOB shanghai
Overview
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Product Description
Hydraulic system
The crane adopts a series-connected hydraulic system with hydraulic pilot proportional control. The high-speed hydraulic motor drives the planet reducer to realize movements of the mechanisms.
The system has such advantages as high efficiency, energy-saving, smooth and safe simultaneous movements.
The oil cooler for hydraulic system: a radiator driven by high-power hydraulic motor, 40 kW
Hydraulic oil tank capacity: 770 L
Electrical system
24 Volt DC, negative ground, two batteries of 200AH each.
The electrical system of the crane includes the power supply, engine start, engine shutdown, indicator lights, warning devices, illumination devices, fan, wiper, horn, hoisting limiter, hydraulic oil cooling fan, concentrated display panel, load moment limiter, safety devices etc. which not only ensure safe operation of the crane but also provide a good working environment.
Counterweight
A tray-type assembly structure is adopted for the counterweight system. The counterweight plates are stacked up, and locked by the hydraulic oil cylinder.
The counterweight is 2.98 m wide, which is easy for transportation.
The movable counterweight consists of four counterweight plates, i.e. a counterweight base plate (8 t), a middle plate (8 t) and two side plates (2 t each); whose total weight is 20 t.
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton
Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton

Green Zoomlion ZCT600V532 Used Crawler Crane Telescopic Truck Crane 60ton

Specification
item
value
Feature
Other
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining, Other
Weight (KG)
30000
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1.5 years
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition
New
Application
Engineering machinery
Rated Loading Capacity
60ton
Rated Lifting Moment
3087KN.m
Max. Lifting Height
58.5m
Span
Place of Origin
China
Anhui
Brand Name
Zoomlion
Warranty
1.5 years
Product name
Mobile Crane
Crane type
Crawler Crane
Type
Truck Mounted Crane Mobile Crane Truck
Brand
zoomlion
Jib length
7.5-12.8m
Main boom length
11.9-46m
Gradeability
45%
Overall dimension
14000*3300*3220mm
Power Source
Diesel Engine
Walking speed
2.7 (No load) /1.5(Full load)
