Brand Name : Yugong

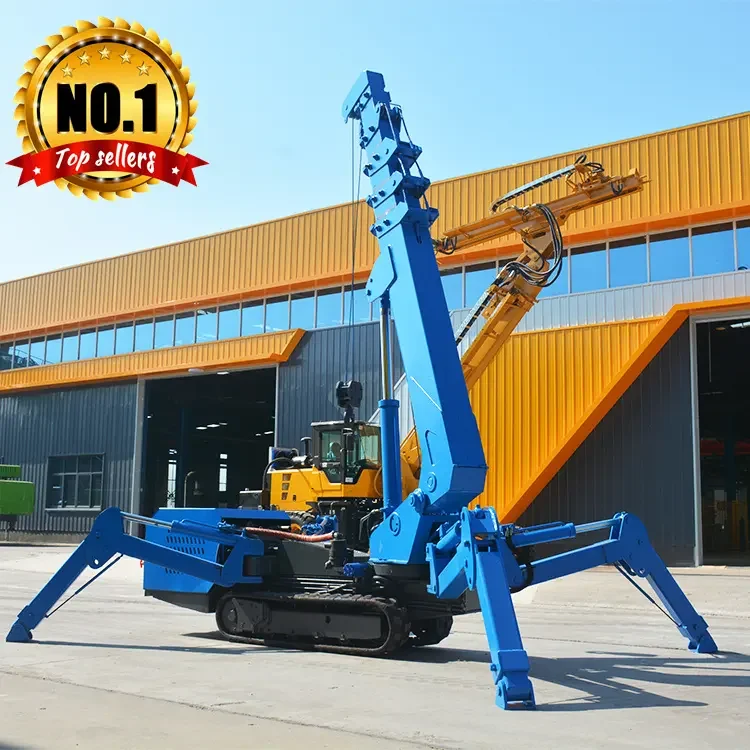

Model Number : Yugong Spider Crane
Certification : EPA、CE
Place of Origin : Henan, China
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 1000
Delivery Time : 7-10days

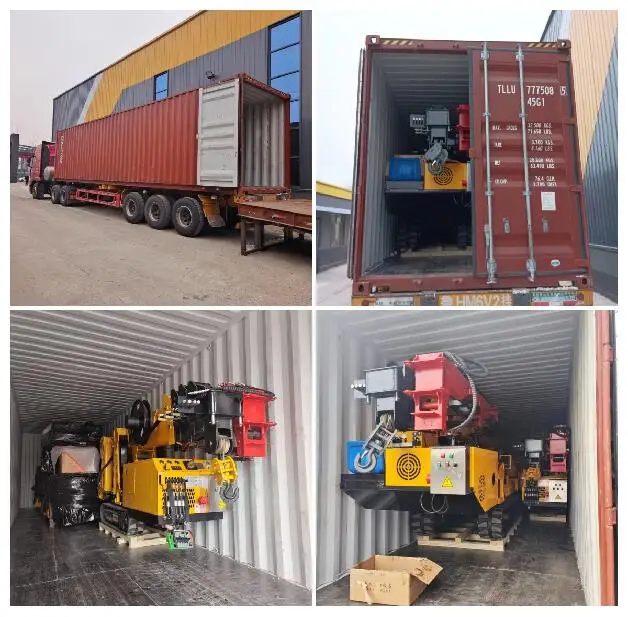

Packaging Details : frame
Weight (KG) : 3000
Marketing Type : Ordinary Product
Core Components : PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear

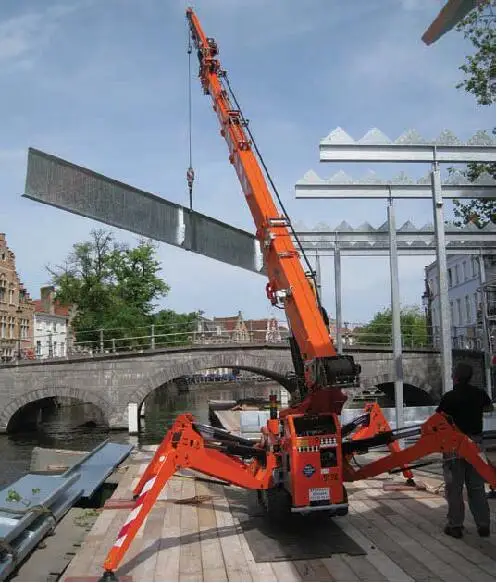

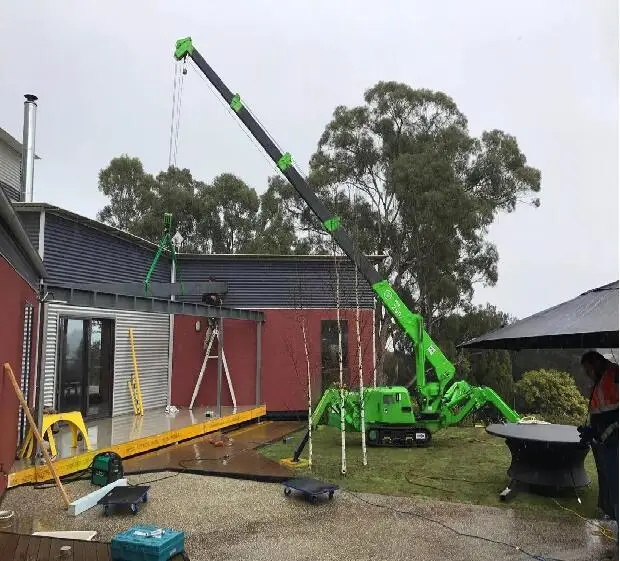

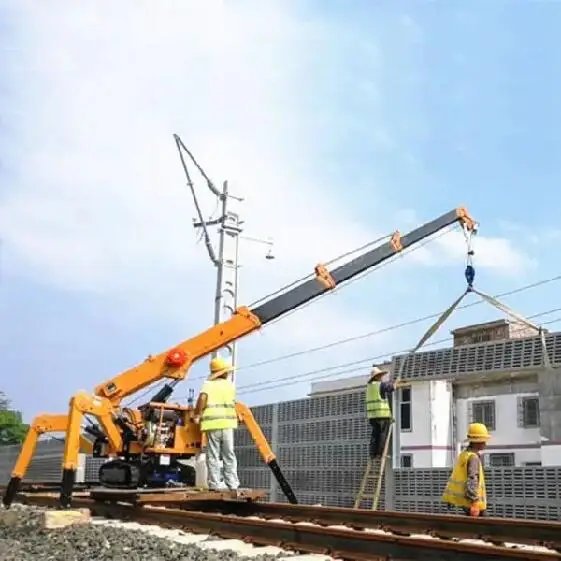

Application : Working in small spaces., Building Construction
Rated Loading Capacity : 3T 5T 8T
Applicable Industries Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufa : Yugong
Boom type : Automatic 4 sections
Model | YG-30 | YG-50 | YG-80 | |
Specification | 3t | 5t | 8t | |
Maximum working radius | 8.83mx0.15t | 14mx0.5t | 16.5m | |
Maximum above-ground head | 9.9mx0.7t | 16.8m | | |
Winch device | Hook Speed | 0-8m/min(4 rope) | 12m/min(4 rope) | 12m/min(4 rope) |
| Rope diameter | 8mm-45m | 11mm-80m | 11mm-80m |
Telescopic system | Boom Type | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure | 5-section boom, pentagonal structure |
| Boom Length/Time | 3.1m-9.2m/20sec | 12.3m/54sec | 12.3m/54sec |
Up and down | Boom Angle/Time | 0°~78°/13sec | 0°~78°/13sec | 0°~78°/13sec |
Slew system | Slew Angle/Speed | 0-360°continuous/60sec | 0-360°continuous/38sec | 0-360°continuous/38sec |
Traction system | Walking Way | Hydraulic motor drives | Hydraulic motor drives | Hydraulic motor drives |
| Walking Speed | 0~2.5km/h | 0~2.5km/h | 0~2.5km/h |
| Grade Ability | (25°)36% | (25°)36% | (25°)36% |

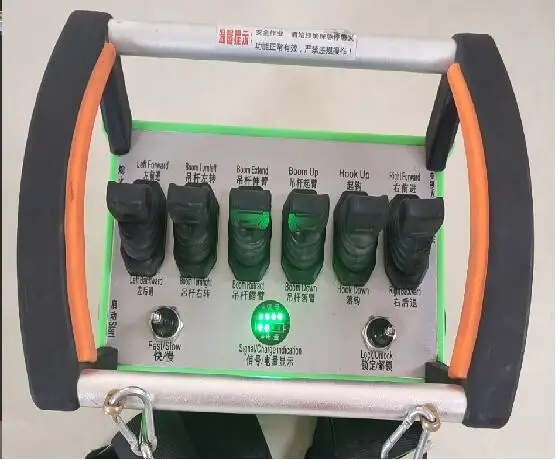

| Operating characteristics | Manual operation, remote control | Manual operation, remote control | Manual operation, remote control |
Transport parameters | L*W*H(mm) | 2950*980*1560 | 5000*1500*1900 | 5000*1600*2180 |
| Total weight(kg) | 2700 | 6200 | 7200 |
![]() |
