(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity
| Description | Unit | Parameter value |
| Engine model | | QSM 11 |
| Rated power/speed | kW/rpm | 261/2100 |
| Overall dimension (standard) | | 11250X3180X3820 |
| Total weight (standard) | kg | 30000 |
| Tire specification | | 23.5R25 |
| Ground clearance (front axle) | mm | 500 |
| Tread | mm | 2580 |
| Space of front and rear axles | mm | 7200 |
| Space of middle and rear wheels | mm | 1960 |
| Forward velocity | km/h | 5/8.5/13/20/30/45 |
| Reverse speed | km/h | 5/13/30 |
| Tractive effort f=0.75 | kN | 165 |
| Maximum gradeability | % | 25 |
| Tire inflation pressure | kPa | 320 |
| Working system pressure | MPa | 25 |
| Maximum steering angle of front wheel | | ±45° |
| Maximum slant angle of front wheel | | ±17° |
| Maximum oscillating angle of front axle | | ±15° |
| Maximum oscillating angle of equilibrium box | | Front15°,Rear15° |
| Maximum steering angle of frame | | ±22° |
| Minimum turning radius | m | 8.9 |
| Scrape knife | Maximum lift height | mm | 450 |
| Maximum cutting depth | mm | 500 |
| Maximum tilt angle | | 65° |
| Cutting angle | | 28°—70° |
| Angle of revolution | | 360° |
| Length & chord height | mm | 4877x787 |
| Coolant | L | 50 |
| Fuel tank | L | 550 |
| Engine | L | 37 |
| Transmission | L | 38 |
| Hydraulic oil | L | 310 |
| Drive axle | L | 106 |
| Balancing box | L | 186 |
Product Tags:
|
|

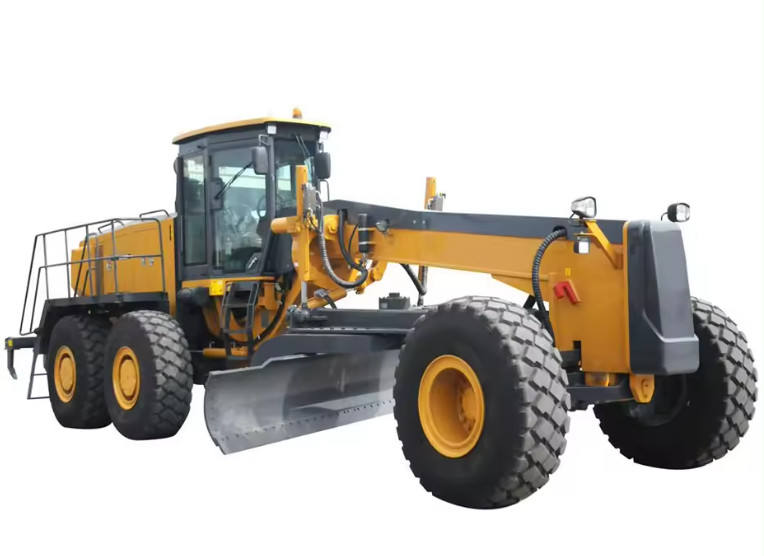

China Motor Grader China Brand New GR3505 350Hp Mining Grader Manual Automatic Shifting Motor Grader For Sale Images
|
