Brand Name : Sany
Model Number : SY215C
Certification : EPA/CE
Place of Origin : China
MOQ : 1 set
Payment Terms : T/T, Western Union
Supply Ability : 100 sets per month
Delivery Time : 7-10 days
Maximum Digging Height : 9660mm
Max Speed : 5.5km/h
Operating Weight : 23550 kg
Fuel : Diesel
Status : Used
Dimension : 9885*2980*3160mm
Used SANY SY215C Crawler Excavator 122KW Cummins Engine
Key Attributes
Overall length | 9,680 mm | |
Overall width | 2,980 mm | |
Overall height above cab | 3075 mm | |
Overall height of boom | 3,440 mm | |
Upper width | 2,875 mm | |
Track gauge | 2,380 mm | |
Undercarriage length | 4,450 mm | |
Track shoe length | 4250 mm | |
Track shoe | 600 mm | |
Minimum ground clearance | 440 mm | |
Tail swing radius | 2,900 mm | |
Ground contact length of track | 3445 | |
Boom length | 5,700 mm | |
Bucket arm length | 2,900mm | |
Bucket capacity | 0.93 m³ | |
WEIGHT | ||
Total weight | 21900 kg | |
WORKING RANGE | ||
Maximum digging height | 9600 mm | |
Maximum unloading height | 6,7300 mm | |
Maximum digging depth | 6,600 mm | |
Maximum digging distance | 10,280 mm | |
Minimum slewing radius | 3,730 mm | |
Maximum height at minimum slewing radius | 7,680 mm | |
ENGINE | ||
Model | 4M50 | |
Rated power | 114 kW/2050rpm | |
Max. torque | 580 N.m/1600rpm | |
Displacement | 4.9 L | |
HYDRAULIC SYSTEM | ||
Main pumps | Adjustable axial piston pump | |
Maximum oil flow | 2 x 222 L/min | |
Travel drive | Adjustable axial piston pumps | |
Slewing gear | Adjustable axial piston pumps | |
PRESSURE LIMITING VALVE SETTINGS | ||
Boom circuit | 343 bar | |
Slewing circuit | 275 bar | |
Drive circuit | 343 bar | |
Pilot control circuit | 39 bar | |
Powerboost | 383 bar | |
OUTPUT | ||
Slewing speed | 11 | |
Traveling speed (high/low),km/h | 5.4/3.3 | |
Ground pressure, kPa | 47.4 | |
Climbing ability | 70%/35° | |
Digging force of bucket, kN | 138 | |
Digging force of bucket rod, kN | 103 | |
SERVICE REFILL CAPACITIES | ||
Fuel tank | 340 L | |
Engine coolant | 29 L | |
Engine oil | 22 L | |
Travel drive (per side) | 5.0 L | |
Hydraulic oil tank | 239 L |
Product Description
The Sany SY215C is a crawler excavator manufactured since 2018. It weighs 21.9 tons and has a transport length of 9.68 meters, a transport width of 2.98 meters, and a transport height of 3.44 meters. It has a tear-out force of 138 kN and a dredging depth of 6.255 meters. The maximum reach horizontal is 9.6 meters and the bucket capacity is 0.93 U/min. The track width is 600 HP.
Contact
FAQ
Q: What sets us apart?
A: We excel in dealing with used machinery, offering comprehensive explanations to address any inquiries about our machines. With a vast inventory of over three thousand excavators readily available in our own yard, we ensure your needs are met.
Q: How do we guarantee machine condition and longevity?
A: To assure the quality and lifespan of our machines, we follow a meticulous process. Firstly, we select machines in good condition with low hours of usage. Secondly, we provide the option for third-party certification of all our machines. Thirdly, we welcome your personal inspection of the machinery in its location. Lastly, we offer a robust pre-sale and after-sale service, as detailed on our website.
Q: How can customers inspect machines in China?
A: Many of our customers are open for video calls or enlist third-party inspection companies to evaluate the machines. Should you wish to inspect the equipment yourself, simply notify us in advance, and we'll make the necessary arrangements for your visit to China. Your visit is warmly welcomed!
Q: Are you a manufacturer?
A: Yes, we operate a factory staffed with skilled technicians on-site, complemented by our trading company.
Q: Can you ensure compatibility with my excavator?
A: Absolutely, we specialize in this field. Share your preferred tonnage and brand, and we'll recommend a suitable model for you.
Q: What are the MOQ and payment terms?
A: Our MOQ is just one set, and we accept payment via T/T, with other terms open for negotiation.
Q: What is the delivery time?
A: Typically, we can ship within approximately two working days after payment, contingent on your specific shipping schedule.
Q: What about packaging options?
A: We provide various packaging choices, including Bulk ship, RoRo vessel, Flat rack, and container options.
Q: Which countries do you export to?
A: We export to a wide range of countries USA, Indonesia,Vietnam, Saudi Arabia, Thailand, Italy, New Zealand, Canada, Australia,Peru, Chile, Brazil, Mexico, South Africa, and many more, covering almost every corner of the globe.
![]() |

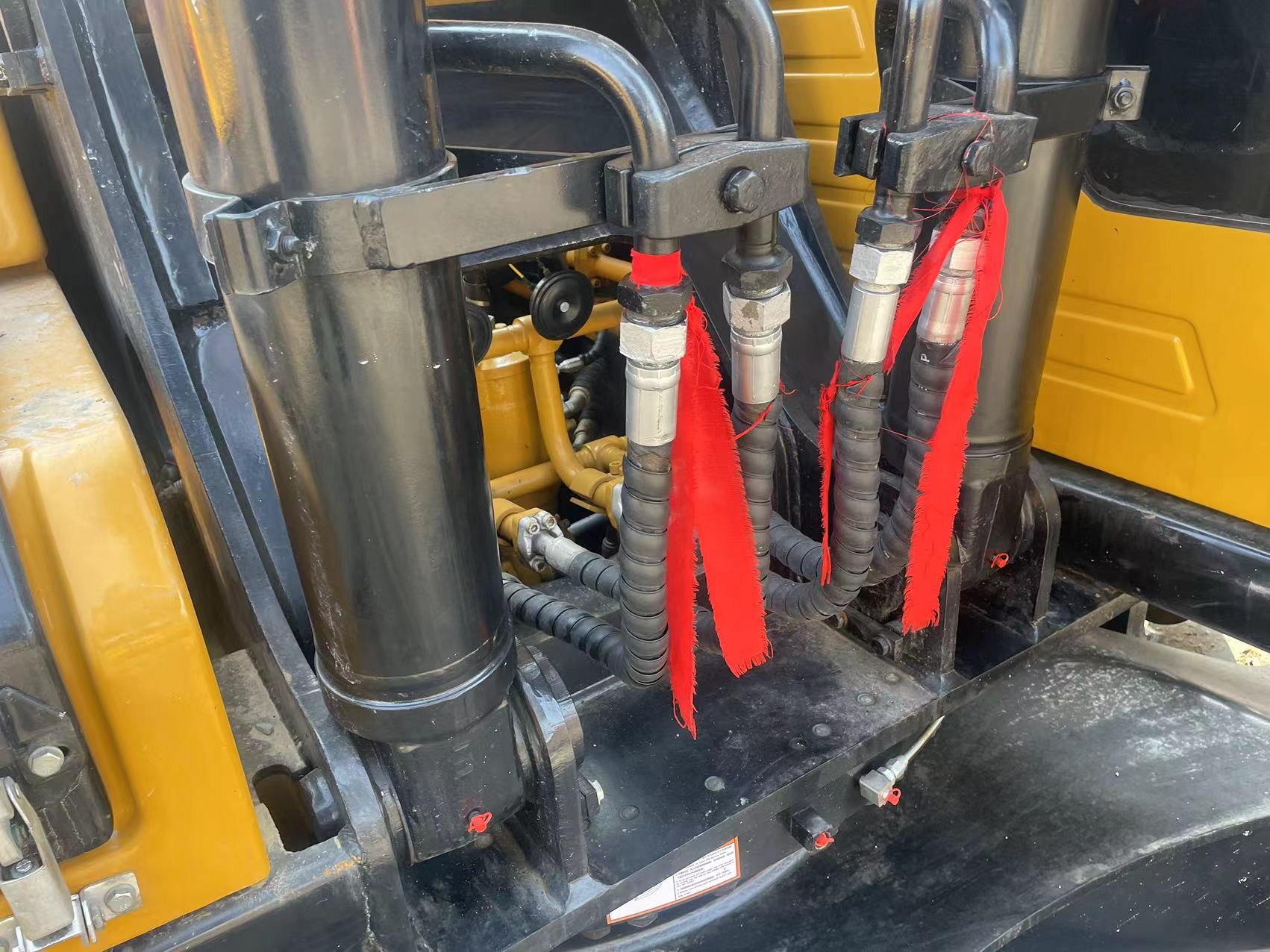

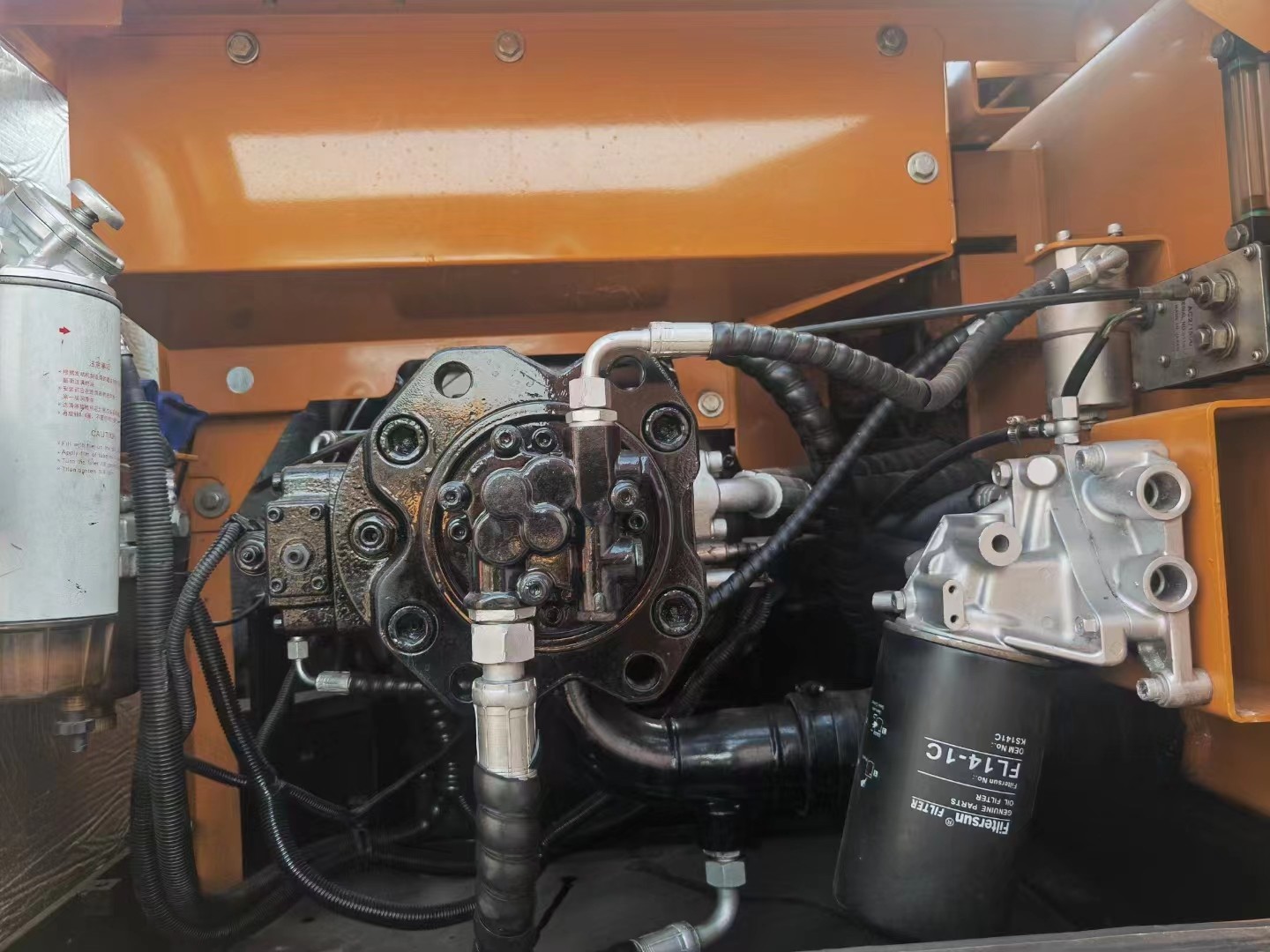

Used SANY SY215C Crawler Excavator 122KW Cummins Engine Images |
