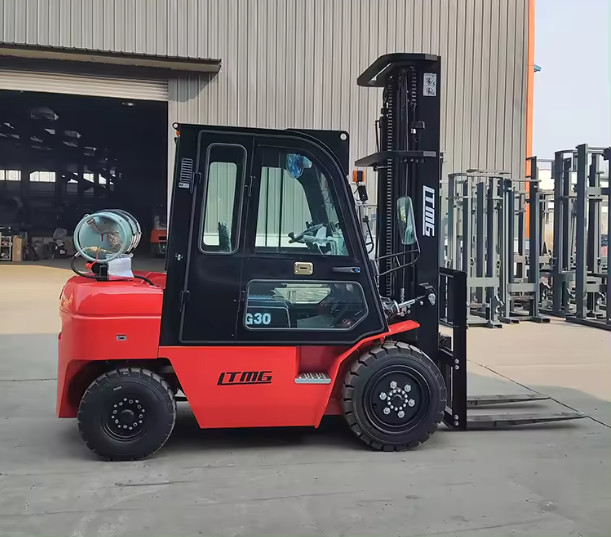

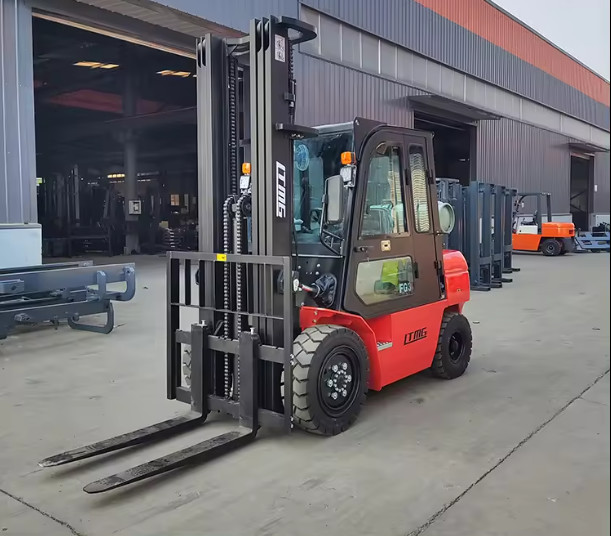

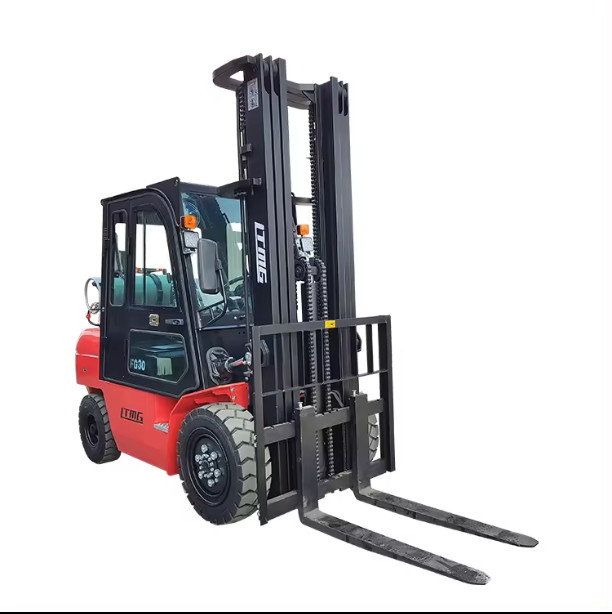

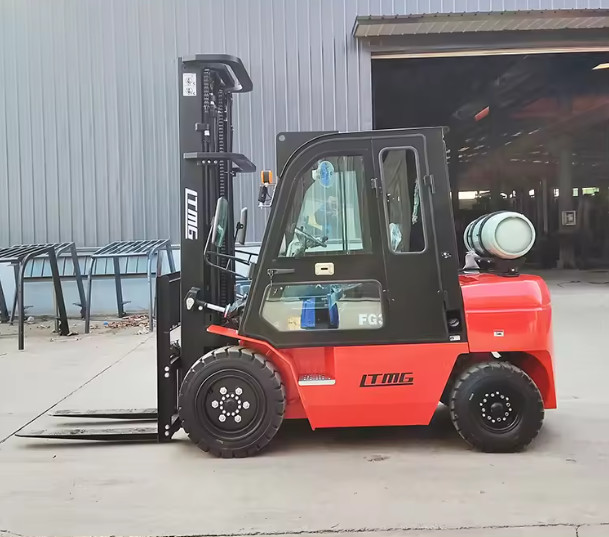

Propane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With Cabin

Product Categories
Xinrui International Trading Co., Ltd
Contact Now

Propane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With Cabin

Brand Name : LTMG

Model Number : 3ton

Certification : EPA/CE

Place of Origin : Zhejiang, China

MOQ : 1 unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 unit

Delivery Time : 7-10days

Packaging Details : frame

Power Souce : LP Gas Engine

Machinery Test Report : Provided

Warranty of core components : 1.5 years

Core Components : Motor, Gearbox, Engine

Contact Now

Propane forklift LPG and gasoline forklift 3.5 ton 3 ton 2.5 ton 2 ton gas forklift with cabin

Main Features of forklift

-Hydraulic Control Type: main pump is Shimadzu brand;
-USA IMPCO gas system

-Japanese Nissan egnine or USA PSI EPA engine

-Toyota seat with safty belt

-Cascade side shifter

The specification of 3 ton LPG forklift
Model
FG30
Power Type
LPG & Gasoline
Rated Capacity
kg
3000
Load Centre
mm
500
Lift Height
mm
3000
Fork Size
L×W×T
mm
1070×125×45
Mast Tilt Angle
F/R
Deg
6°/12°
Front Overhang (Wheel center to fork face)
mm
480
Ground Clearance(Bottom of mast)
mm
140
Overall Dimension
Length to face of fork(Without fork)
mm
2730
Overall Width
mm
1225
Mast Lowered Height
mm
2115
Mast Extended Height(With backrest)
mm
4150
Overhead Guard Height
mm
2090
Turning Radius (outside)
mm
2440
Speed
Travel (Empty load)
km/h
20
Lifting (Full load)
mm/s
510
Max.Gradeability (No load/Full load)
%
20
Tire
Front
mm
28×9-15-12PR
Rear
mm
6.50-10-10PR
Wheelbase
mm
1700
Service weight
kg
4300
Battery
Voltage/Capacity
V/Ah
12/80
Engine
Model
K25
Manufacture
GCT (NISSAN)
Rated output/r.p.m.
kw
35.6/2100
Rated torque/r.p.m.
N·m
176.5/1600
No.of Cylinder
4
Bore×Stroke
mm
89×100
Displacement
cc
2488
Fuel Tank Capacity
L
60
Transmission
Type
Hydraulic
Stage
FWD/RVS
1/1

Propane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With CabinPropane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With CabinPropane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With CabinPropane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With CabinPropane LPG And Gasoline Gas Forklift 3.5 Ton 3 Ton 2.5 Ton 2 Ton With Cabin
